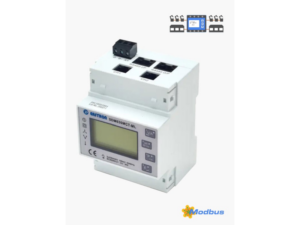

The SDM630MCT-ML is a high accuracy multifunction power meter that has been developed with plug in connections for the current transformer and mains voltage supply inputs. This negates the need to traditional wire into the meter and saving 90% on labour as well as eliminating wiring errors. Configurable for up to 12 x single phase 2 wire (1p2w) or 4 x 3 phase 4 wire (3p4w) systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power and Current Demand (Sliding and fix scale options), Power Factor, imported and exported kWh and total harmonics. It is one of the most user-friendly multifunction power meters in the market form installation to end client use. It can be connected over a IQnexus LoRa® Transceiver to On-Premise or Cloud based IQnexus IoT Platform and Middleware. The Platform provides ModBus IP or BACnet with the On-Premise NBNANO version. Different APIs are also available for different BMS and Energie Management Systems. The SDM630MCT-ML meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.
Features
- Monitors and displays up to 4 x 3 phase 4 wire (3p4w) or 12 x single phase 2 wire (1p2w) systems
- Allows 128 x 3p4w circuits on a standard Modbus network
- EasyClick technology for plug in current transformer and mains voltage connection
- Elimination of wiring errors & labour saving
- Highly visible backlit display from all angles
- Programmable reverse flow for right/left side of breaker CT installation

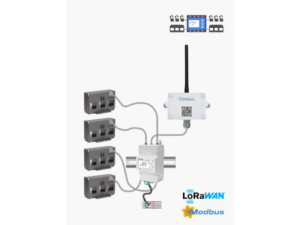

- Can be wireless connect via LoRaWAN® ModBus Transceiver
See it in action
See below real life use cases for the Multi Channel Meter with optional LoRa ModBus Transceiver, please contact us if you want to find out how to install or implement your multi channel power meter for your smart Energy Management solutions.
